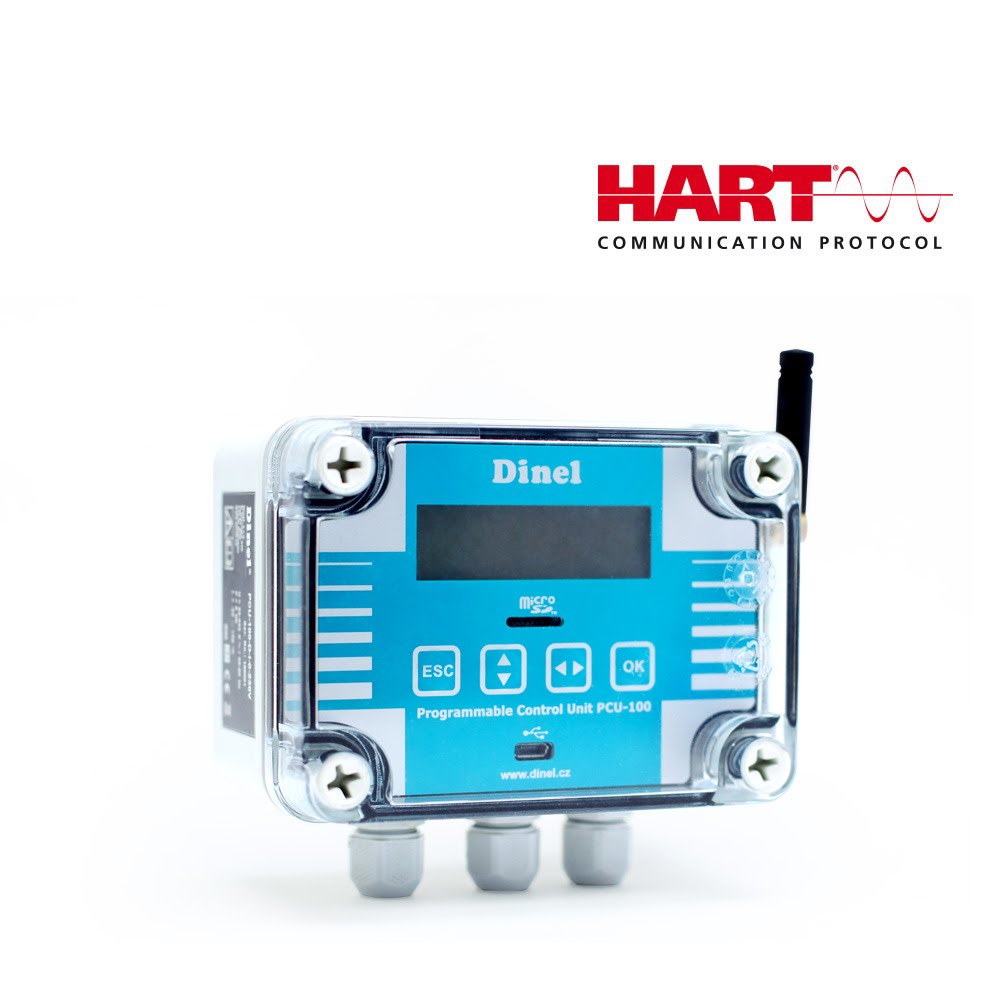

Programmable control unit PCU–100

For measuring, displaying and archiving physical quantities (level measurement, pressure, flow, temperature, etc.).

  • Universal industrial data logger, optionally with six-digit display (PCU-100-D).
  • One input channel - 4-20 mA current loop, optional with HART® communication protocol (PCU-100 -_- H).
  • It is possible to choose a unit with a GSM module for remote data management (PCU-100-_G).

  • Connection to a PC via a micro USB port, UniScada application (downloadable at www.dinel.cz) for setting up the unit and the connected sensor (only versions with HART® communication).
  • Contains a power supply source for sensor.
  • Easily readable backlit LCD display that allows display configuration, including bar graph.
  • Large selection of displayed units, including user-defined ones.
  • Storage of data with user-defined period onto internal continuously overwritten flash memory with 500,000-record capacity.
  • Ability to export data to a microSD card manually or automatically (at intervals or when internal memory is full).
  • Many transfer characteristics: linear, quadratic, radical, user-defined tables with linear approximation or conversion to volume according to specified tank parameters.
  • Real-time battery backup circuit.
  • Full user-defined relay output (alarm, two-position regulation).
  • Optional expansion with communication modules.
  • Supply voltage 85-253 V AC.
