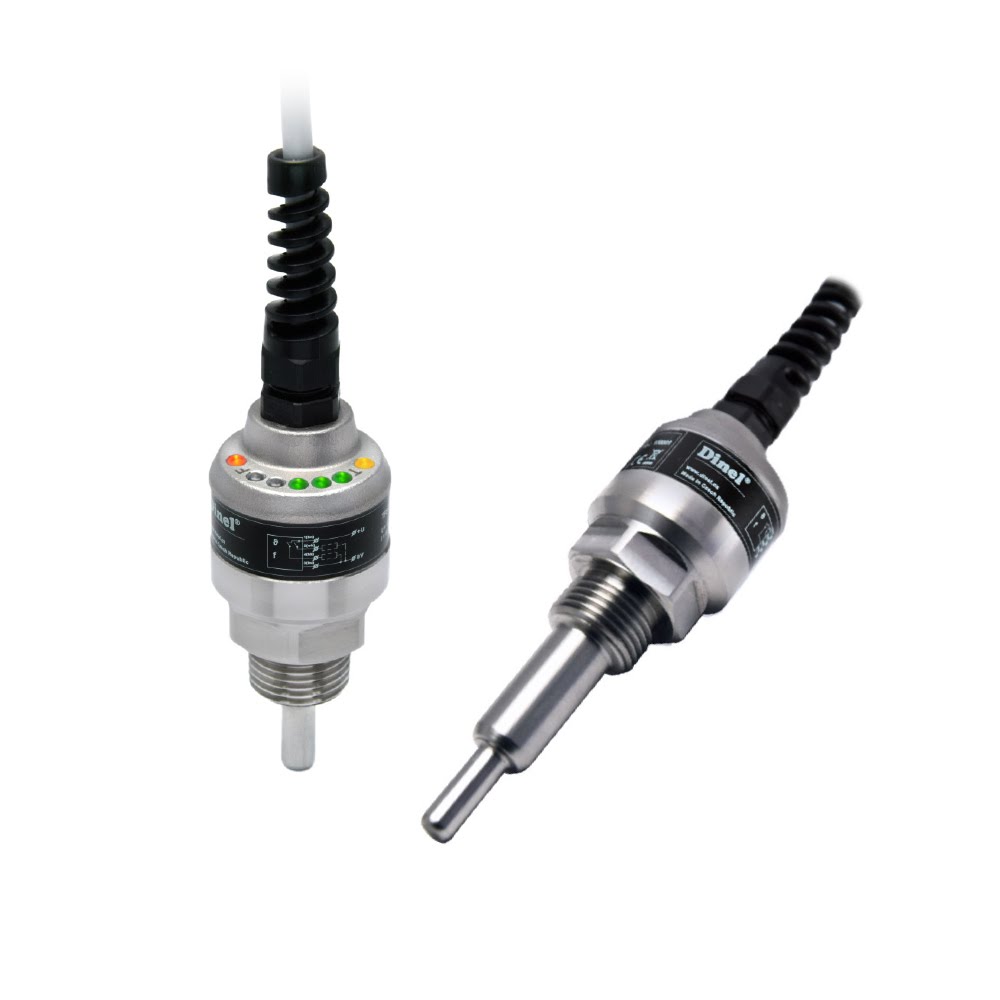

Thermal flow sensor TFS-35

For limit and continuous flow rate sensing of liquid media and for monitoring of their temperature

  • These sensors are intended for installation in pipes,in which the actual flow rate and temperature occurs
  • Flow rate measurement is shown in a bar graph by five green LED diodes and in the same graduation it is possible to select the limit for output switching (unswitching)
  • Optical indication of the flow rate and temperature status via two LEDs
  • Can be selected either 1x current output 4..20 mA and 1x limit PNP output, or 2x limit PNP output
  • Settings provided by magnetic pen
  • Stainless steel case
  • Process connection: thread G½“ or Tri-Clamp
Product variants

Product variants

TFS - 35
Download
  Language Filename File type Last update
datalist CZ Datalist pdf 14 / 10 / 2024
datalist EN Datalist pdf 14 / 10 / 2024
navod CZ Operating instruction pdf 13 / 12 / 2023
navod EN Operating instruction pdf 13 / 12 / 2023
ce CZ Declaration of conformity pdf 20 / 11 / 2022
ce EN Declaration of conformity pdf 20 / 11 / 2022
navod - 3D model TFS-35 zip 25 / 7 / 2019
