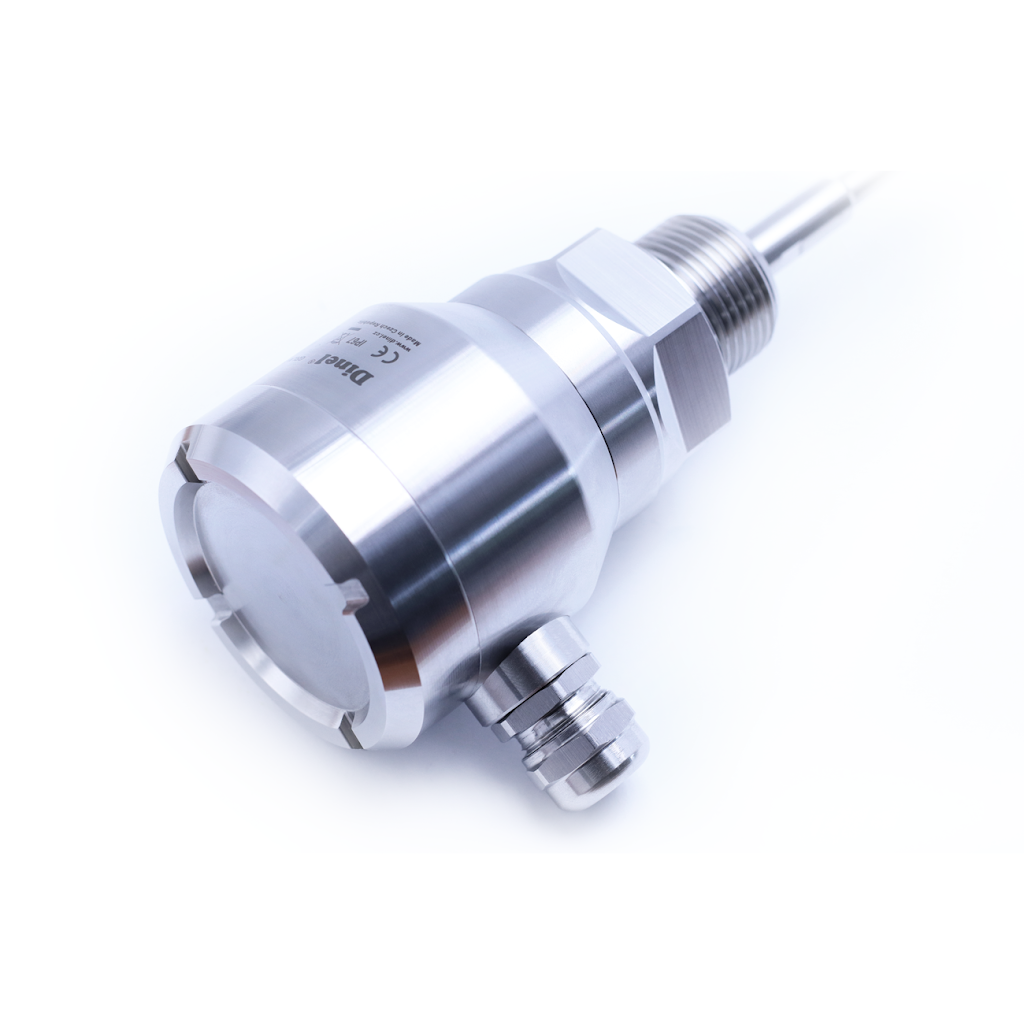

Capacitive level meters CLM-70

New intelligent capacitive level meter with display, HART communication and diagnostics. For continuous level measurement of liquids and bulk solids in all industrial branches.

  • A wide range of applications, direct installation in storage silos, hoppers, vessels, sumps, etc.
  • Variants with fully coated electrodes for aggressive or electrically conductive media.
  • Measured data in real time on the display (OLED or LCD available).
  • Analog output 4 - 20 mA with digital two-way communication HART®.
  • Comparing with reflective level meters, CLM-70 measures along all the electrode in full range (no dead zones).
  • Contrary to radar level meters, also media with extremely low dielectric constants (εr) can be measured.
  • Possible copying the configuration between level meters using the display module.
  • Stainless steel design suitable for the food and pharmaceutical industries.

Product variants

CLM-70

Performance:

  • Performance:
  • Nnormal - for non-explosive areas
  • NSfor non-explosive area, stainless steel housing and lid
  • NThigh-temperature performance, non-explosive areas
  • NTShigh temperature performance for non-explosive area, stainless steel housing and lid

Type electrode

  • Type electrode
  • 00without electrode, no Cl50 process connection can be selected
  • 10uncoated stainless steel rod electrode, length 0.2 ... 8 m, no Cl50 process connection can be selected
  • 11fully coated stainless steel rod electrode (PFA insulation), length 0.2 ... 3 m, no NPT process connection can be selected
  • 12fully coated stainless steel rod electrode (FEP insulation), length 0.2 ... 3 m, no NPT process connection can be selected
  • 13semi-coated rod electrode (FEP insulation), NPT process connection cannot be selected, length 0.5 ... 8 m
  • 20uncoated stainless steel rod electrode with reference tube, can only be used with G1 process connection, length 0.2 ... 3 m
  • 22coated stainless steel rod electrode with reference tube (FEP insulation), can only be used with G1 process connection, length 0.2 ... 3 m
  • 30uncoated steel rope electrode, length 1 ... 20 m, Cl50 process connection cannot be selected
  • 31uncoated steel rope electrode with anchor, length 1 ... 20 m, Cl50 process connection cannot be selected
  • 32electrode with insulated cable (FEP) and insulated weight (FEP), length 1 ... 15 m, NPT process connection cannot be selected
  • 61two fully coated stainless steel rod electrode (FEP insulation), length 0.2 ... 2 m, not applicable for NT performance, can only be used with G1½ process connection

Process connection

  • Process connection
  • G1pipe thread G1
  • G1Ythread G1”, housing material nickel-based alloy (W. Nr. 2.4856 / ALLOY 825)
  • Gpipe thread G1½
  • Cl50Tri-Clamp Ø 50.5 mm, can only be selected for performance types 11, 12, 13, 32
  • Cl64Tri-Clamp Ø 64 mm, can only be selected for performance types 11, 12, 13, 32
  • NPTNPT 1” thread , can only be selected for 00,10, 30, 31, it cannot be used for NT performance

Material of the inner o-rings

  • Material of the inner o-rings
  • Vmaterial FPM
  • Ematerial EFDM
  • Bmaterial NBR
  • Fmaterial FFPM

Output type

  • Output type
  • Icurrent (4 ... 20 mA)

Electrical connection

  • Electrical connection
  • B1plastic cable gland M16
  • B2plastic cable gland M20
  • H1cable gland for protective hose
  • S1stainless steel cable gland M16

Set-up elements

  • Set-up elements
  • Dbasic version with OLED display
  • Cversion with LCD display
  • Lwithout display, full cap

Length of electrode

  • Length of electrode
  • Eelectrode length in v mm
